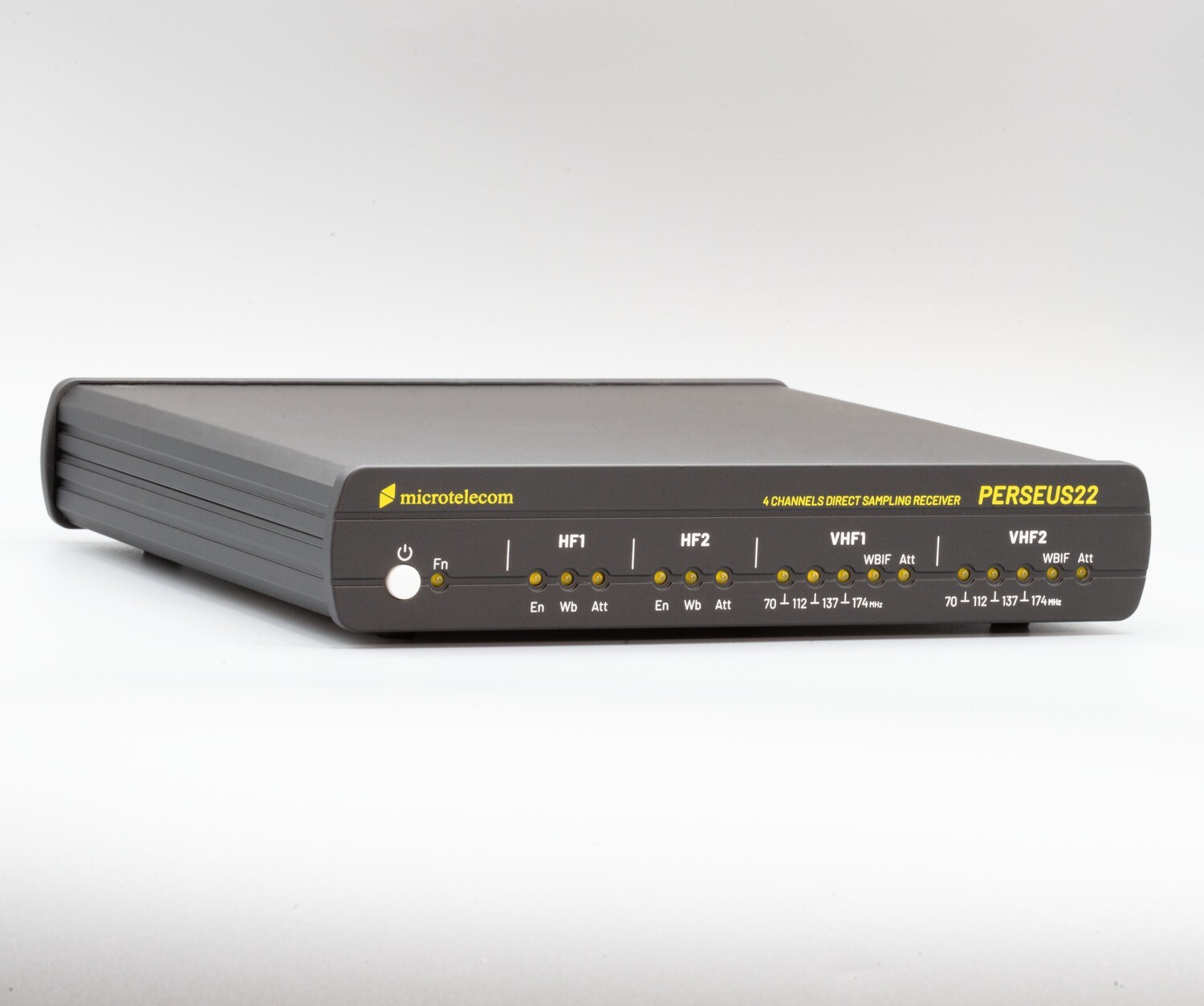

Perseus22 Receiver

Perseus22 is a 4 channels, direct sampling receiver with a continuous frequency coverage from 10 kHz to 225 MHz (usable up to 240 MHz for DAB) and a typical image rejection larger than 70 dB.

All channels are synchronously sampled by a high SNR, 14 bits A/D converter and processed by a software defined digital down converter, implemented on an FPGA, which outputs are routed to the host computer by an USB 3.0 controller, allowing wide-bandwidth IF applications.

The frequency coverage is split-up into 2 groups of channels:

• the first group with 2 channels for VLF-HF frequency range (10 kHz to 70 MHz),

• the second group with 2 channels for VHF frequency range (70 MHz to 225 MHz).

Each group is capable of diversity which can reduce noise on the order of tens of dB. All channels include an analog RF frontend equipped with attenuators, preselection filters and amplifiers .

Modes: AM, SAM, QSAM, CW, CWr, RTTY, RTTYr, LSB, USB, IQ, FM, WFM, DAB+ .

Sample rates: 250, 500, 1000 and 2000 kSps ( max span of 1600kHz ).

Shipped with:

• AC/DC power supply GSM40A09-P1J (with AC power cord of your choice: EU, UK or US),

• USB 3.0 AB cable, length 2 meters,

• 4 SMA-BNC adapters.
