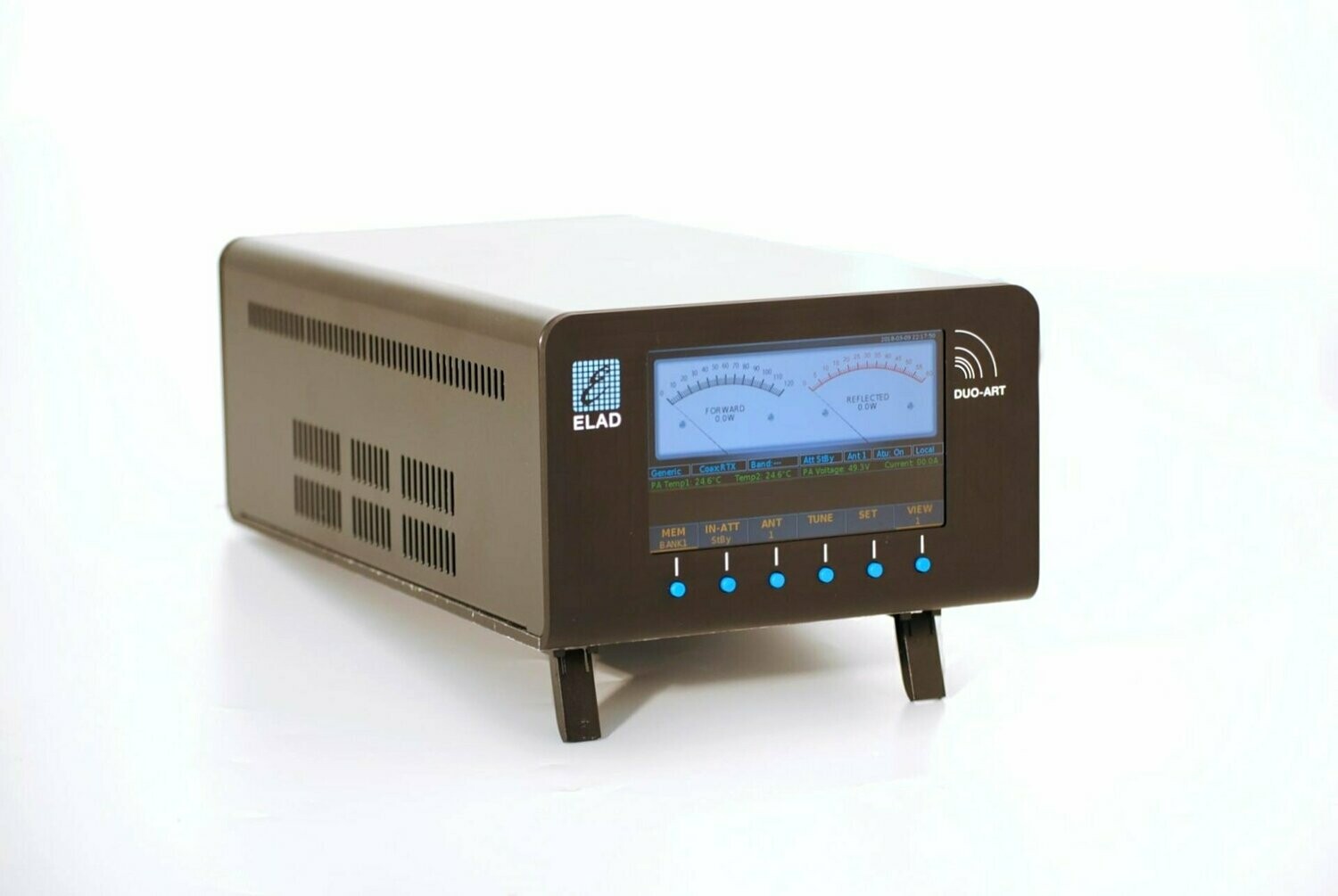

DUO-ART 120

The production of the DUO-ART 120 is currently suspended due to the lack of electronic components worldwide.

DUO-ART 120 is a 120 watt amplifier for HF and 50MHz frequency ranges. It includes the internal PA power supply, preselector filter slots and an antenna tuner. It features 20 memory banks and each one saves various settings (attenuators, antenna used, antenna tuner state, ...). It has three modes of operation : FDM-DUO mode with use of the EXT I/O connection, FT-817 mode where the frequency is read through the RS-232 port and the Generic mode in which the internal frequency meter is used.

In FDM-DUO mode it is possible to activate the remote option to remotely control the FDM-DUO transceiver using the EladRemote software compatible with Windows (using Cygwin) and Linux.

Technical Specifications

• AC Power Supply : 100-240Vac 50/60Hz.
• DC Power Supply : none.
• Frequency Range : 1.8-30 MHz, 50-54 MHz.
• Input Power : 5W typical for 120W output (HF bands), max 10W.
• Power Gain : less than 15dB, 14dB typical.
• Output Power :
  • 160m band : 100W typical with 5W input,
  • 80-10m bands : 120W typical with 5W input,
  • 6m band : 100W typical with 5W input.
• Metering : Input Power, Output Power, VSWR, Drain Current, Drain Voltage, Temperatures.
• Dimensions (H x W x L) : 1100 x 1800 x 3150 mm / 4.3 x 7.1 x 12.4 in.
• Weight : 5 Kg / 11 lb.
