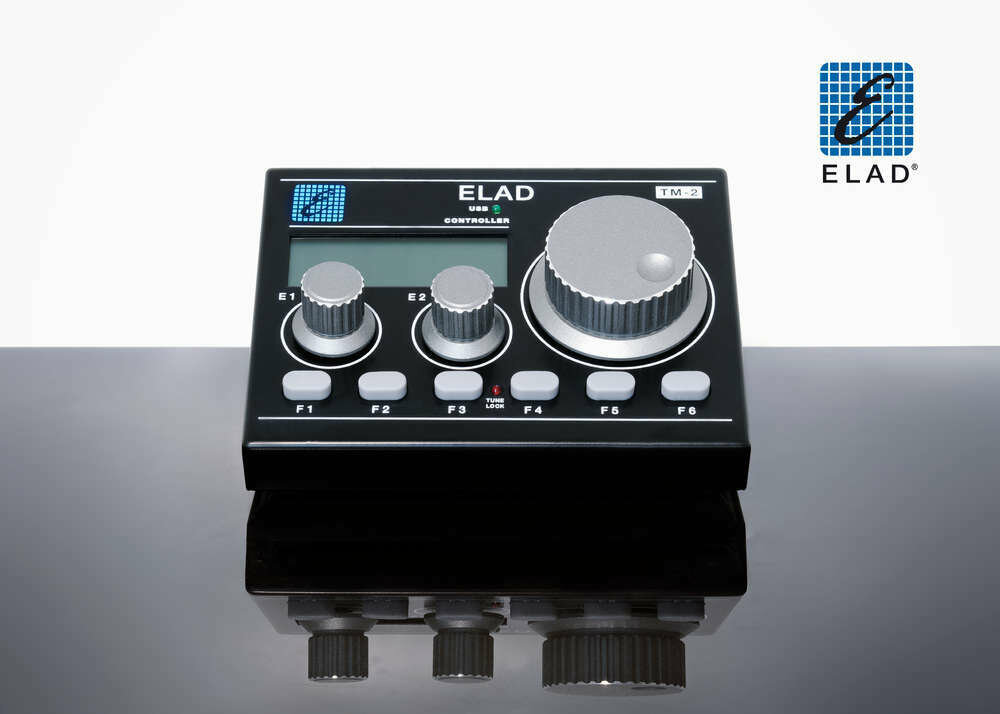

TM-2 Console for SDR Radio

TMate 2 is the most awaited accessory by many users of SDR radio that cannot or will not stay without usual knobs and display. With knobs and buttons, multifunctions color display and USB HID interface, TMate 2 allows the control of main functions of SDR software as FDM-SW2, PowerSDR and Perseus. Intended mainly to allow the use of SDR software without the need to watch the screen of the computer, or when the screen of the computer is crowded by various programs of log or software for digital or contest operations.

Technical Specifications

• HID USB 2.0 device (no driver required).
• Works using Vcom and CAT protocol or directly supported in software.
• Works even your SDR is not active window.
• Main tuning knob (with push button) for incremental step VFO tuning (user defined).
• Two detent encoder (with push button) for various functions (factory defined).
• 6 function keys (factory defined).
• RGB custom display (color user defined in RGB range).
• Heavy metal ergonomic enclosure.
• Heavy metal knobs.
• No power supply required.
• Compatible with PowerSDR and Perseus (dedicated software included).
• Compatible with remote operation (using serial to TCP converter).
• Directly supported (no CAT) in FDM-SW2 ELAD software.
• Dimensions (W x H x D) : 143mm x 78mm x 135mm.
• Weight: 780 g (without USB cable).
• Front panel inclination: 45°.
• USB (PC) powered - USB cable included.

Go to TM-2 files
