Bundle A12-1090-A Preamplifier + BT12-A Bias Tee

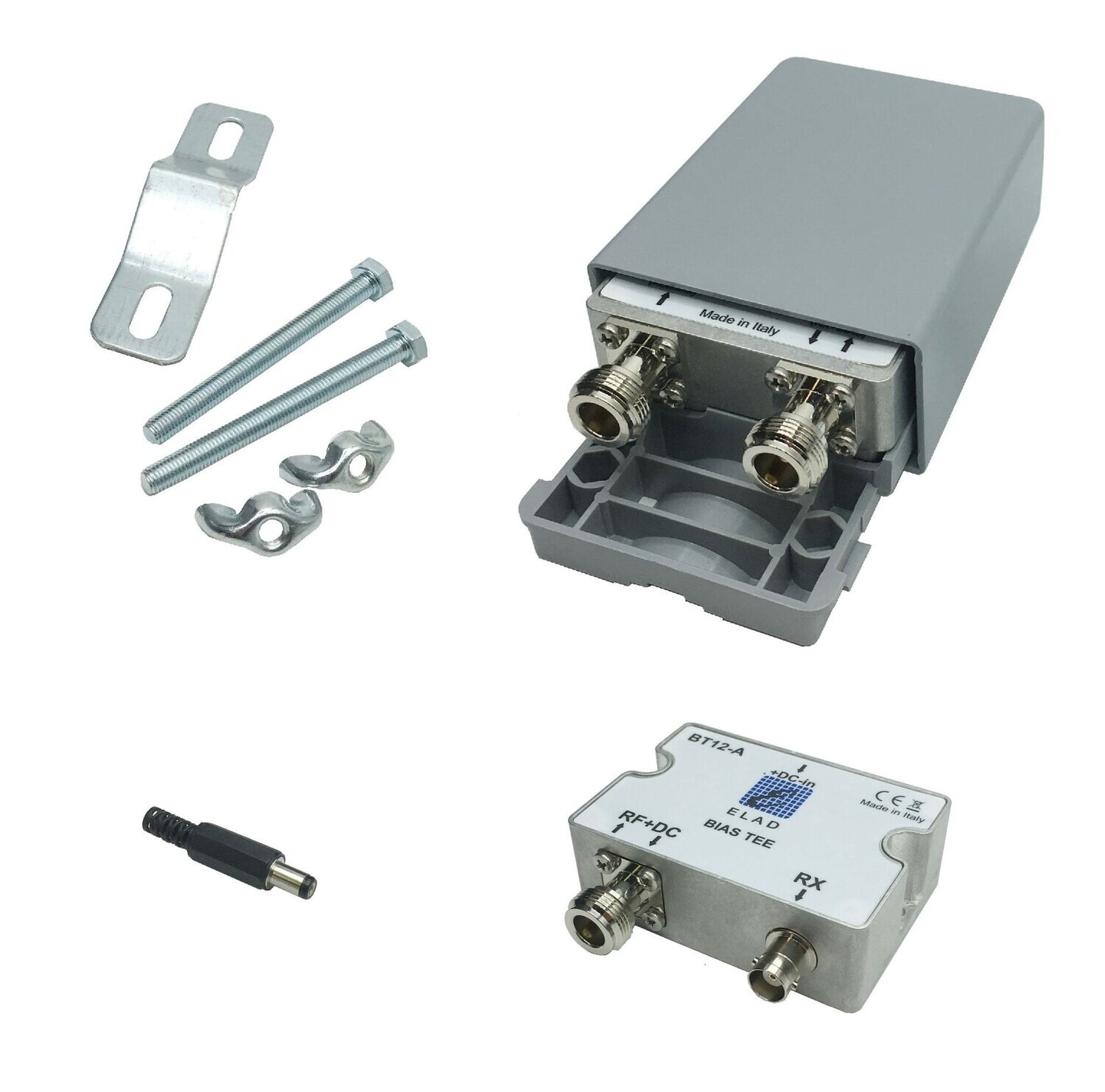

Bundle composition : A12-1090-A Preamplifier + BT12-A Bias Tee.

The A12-1090-A is a low noise preamplifier designed to improve the reception of the S/ADS mode B beacons sent out by the commercial aircrafts at 1090MHz. It is provided with a waterproof ABS case suitable for a 44mm max. diameter mast.

The BT12-A is a 12V DC powered bias tee used to power the A12-1090-A preamplifier. It is supplied with a jack connector with solder contacts.

Technical specifications (A12-1090-A Preamplifier)

• Frequency range : 1030MHz - 1090MHz.
• Gain : 12dB.
• Noise figure : 0.9dB.
• Supply voltage : 12V DC (over coax cable).
• Power consumption : 100mA.
• Max. input level : +2dBm.
• Connectors : N type (female).
• Size (with case) : 75 x 95 x 45 mm.
• Waterproof case for mast mount.

Technical specifications (BT12-A Bias Tee)

• Supply voltage : 12V DC (jack connector).
• Noise figure : 0.9dB.
• Input RF connector : N type (female).
• Output RF connector : BNC.
• Size (with connectors) : 80 x 73 x 27 mm.
