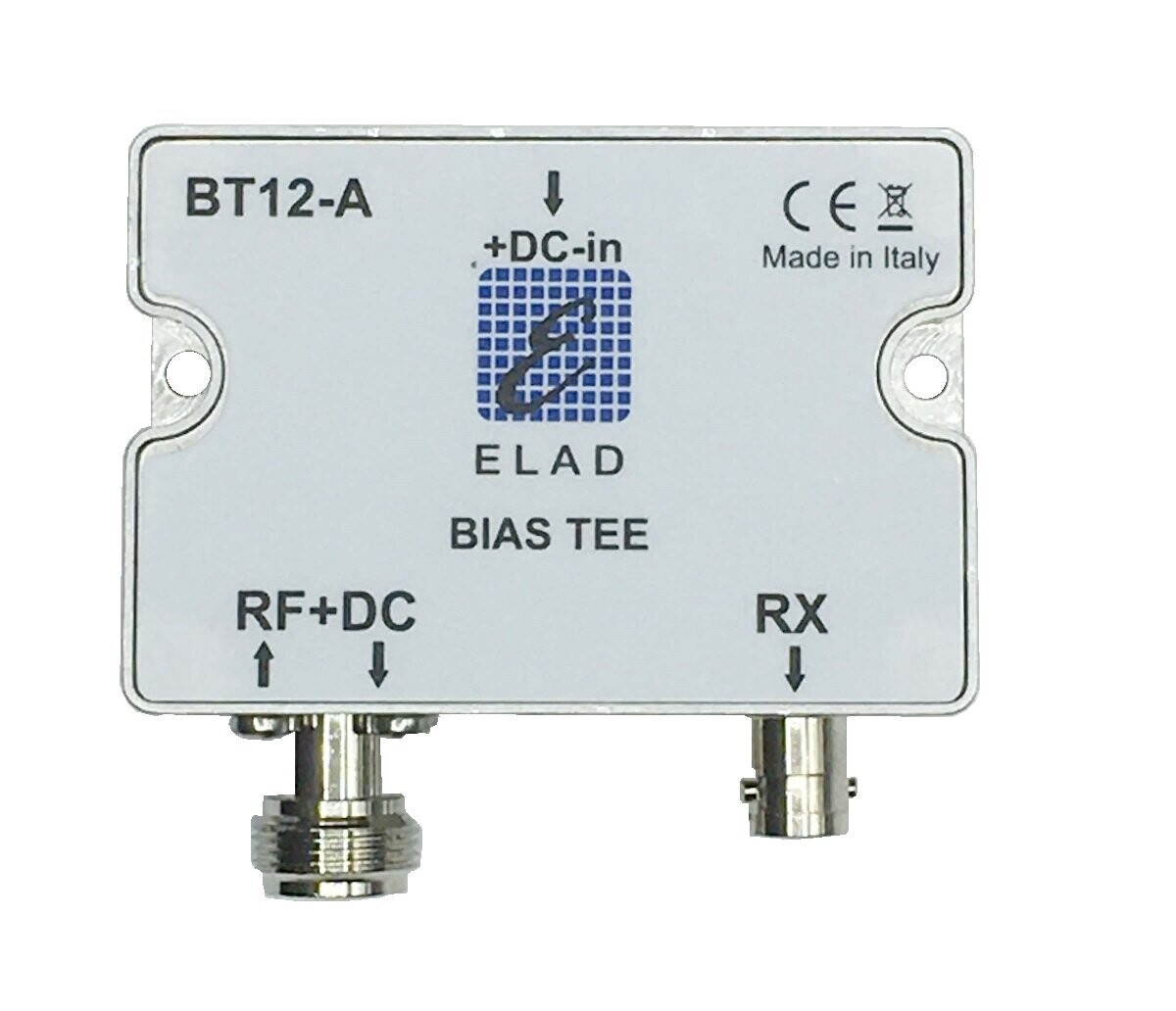

BT12-A Bias Tee

The BT12-A is a 12V DC powered bias tee. It is supplied with a jack connector with solder contacts.

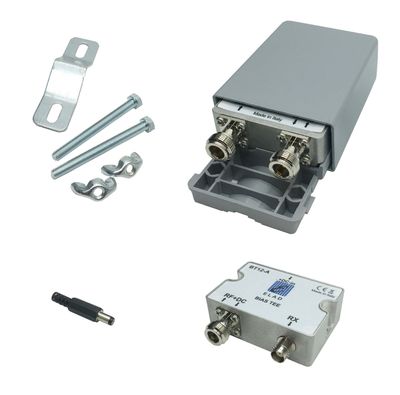

The BT12-A bias tee can be used to power the A12-1090-A preamplifier.

Technical specifications

• Supply voltage : 12V DC (jack connector).
• Noise figure : 0.9dB.
• Input RF connector : N type (female).
• Output RF connector : BNC.
• Size (with connectors) : 80 x 73 x 27 mm.
